Cross Vcenter NSX with OSPF

References:
Cross Vcenter NSX Design Guide
Intra area routes versus inter area routes


In one of the earlier posts, we have covered running OSPF in NSX domain.

Here we try to cover running OSPF in a Cross Vcenter NSX setup.

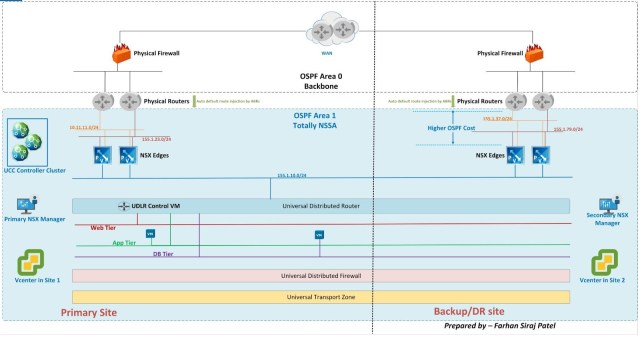

In the above topology:
1. There are two NSX managers.
Primary NSX manager in site 1
And secondary NSX manager in site 2
This is a Active/Passive model.

2. One vcenter in site 1 and the other in site 2

3. Universal Distributed Logical Router UDLR is connected to edges in primary & secondary site using a single Transit logical switch.

4. There are two edges in site 1 and additional two edges in site 2

5. The edges are connected to physical routers as shown above.

6. The physical routers are OSPF Area Border Routers interfacing with OSPF backbone area 0.

7. Totally NSSA area configuration is applied in this setup.
The Area Border Routers are injecting a default route automatically into the NSX domain.

8. Only one Universal Transport Zone can be created to span both the sites.

9. Universal Distributed Logical Router UDLR spans both the sites and allows connecting workloads from both the sites.
The status of UDLR in primary site is ‘deployed’ while in the secondary site it is ‘active’.

10. Universal Distributed Firewall spans both the sites.

11. Universal Controller Cluster is deployed in Site 1

12. Universal objects can be created only from the Primary NSX Manager.
If there is a need to deploy additional UDLR, then this has to be done from Primary NSX Manager only. In this case the UDLR will consume resources (compute, memory and storage) of Site 1

13. UDLR control VM will reside in Site 1 and will establish OSPF peering with NSX edges from both sites 1 and 2.

14. Site 1 is preferred for ingress/egress traffic because the OSPF cost is increased for links between Site 2 physical routers and Site 2 NSX edges.

More traffic flows are discussed in traffic flow section below.

===============================================

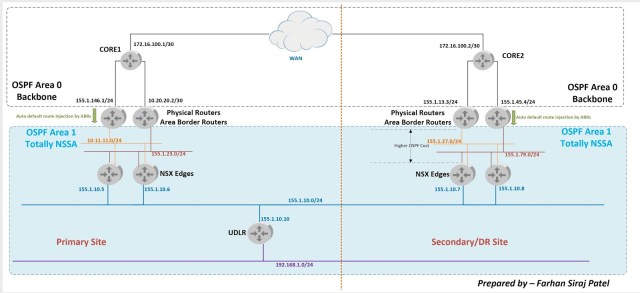

Let’s map this NSX topology with Cisco routers and explore the routing tables on devices.

Subnet 192.168.1.0/24 is connected to router UDLR.

And we check the route lookup for 192.168.1.0 on routers:
1. Core2
2. Core1
3. Physical Router 1 of Site 2
4. Edges of site 1 and site 2

Note the route lookup for 192.168.1.0/24 on Site 2 router 1 prefers the route towards NSX edges in the same site, site 2.
This is despite increasing the OSPF cost on the links connecting Site 2 physical routers and Site 2 NSX edges.
This is because OSPF prefers intra area routes as compared to inter area routes.

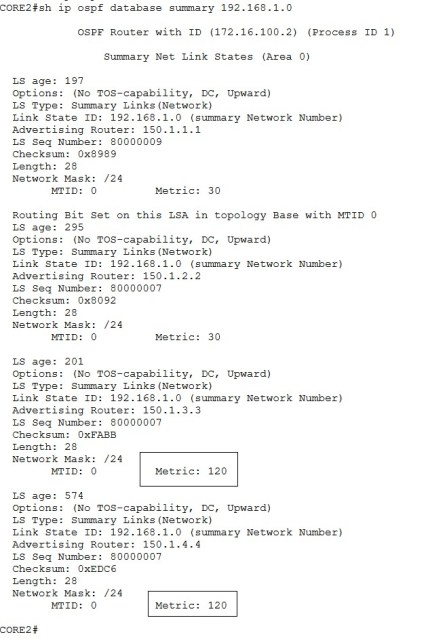

Above output shows that OSPF metric is increased to 120 via Site 2 physical routers.

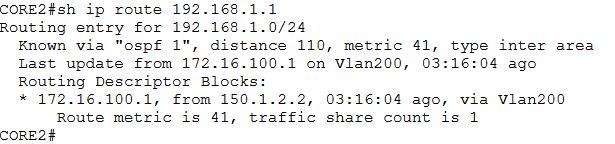

Route for 192.168.1.0/24 on Core2

 Next hop from Core 2 for subnet 192.168.1.0/24 is Core 1 because of lower OSPF cost between site 1 physical routers and Site 1 NSX edges.

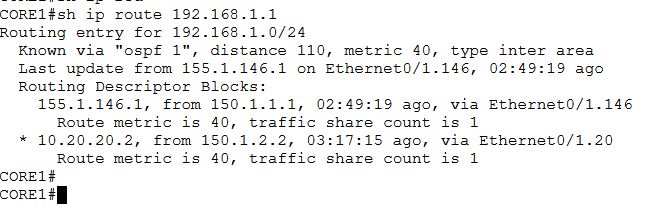

Route for 192.168.1.0/24 on Core 1

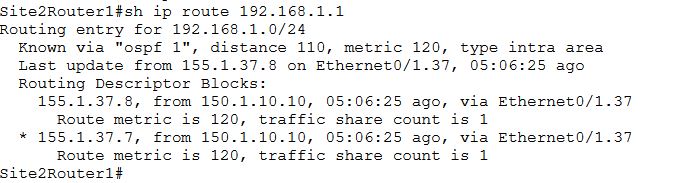

Route for 192.168.1.0/24 on Site2 Router 1



Route for 192.168.1.0/24 on Site 1 Edge

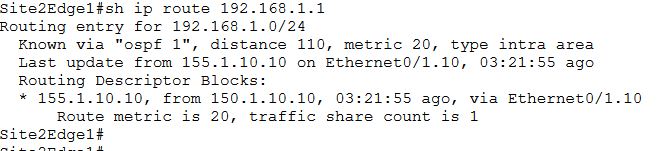

Route for 192.168.1.0/24 on Site2 Edge

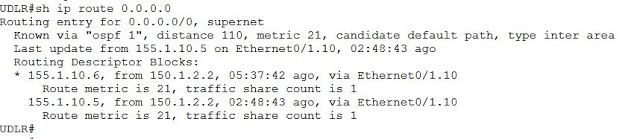

Default route on UDLR
==================================================

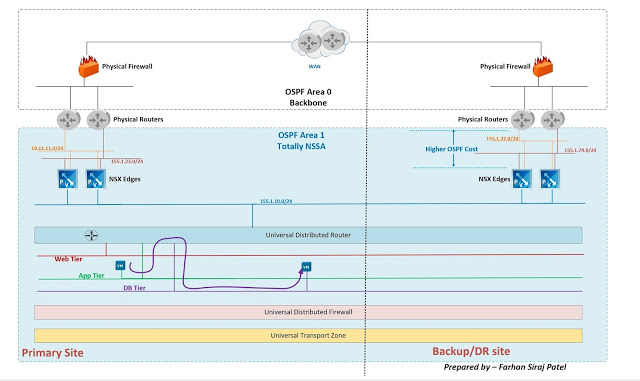

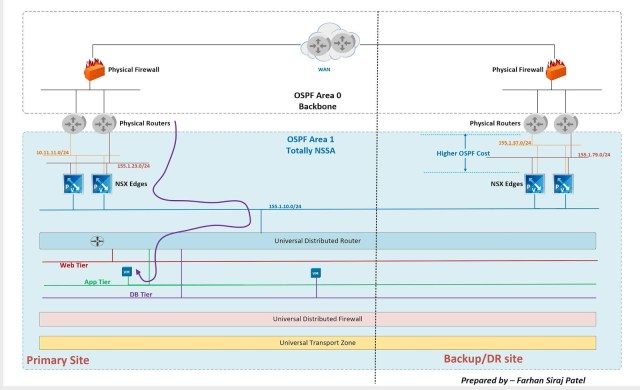

Traffic flows

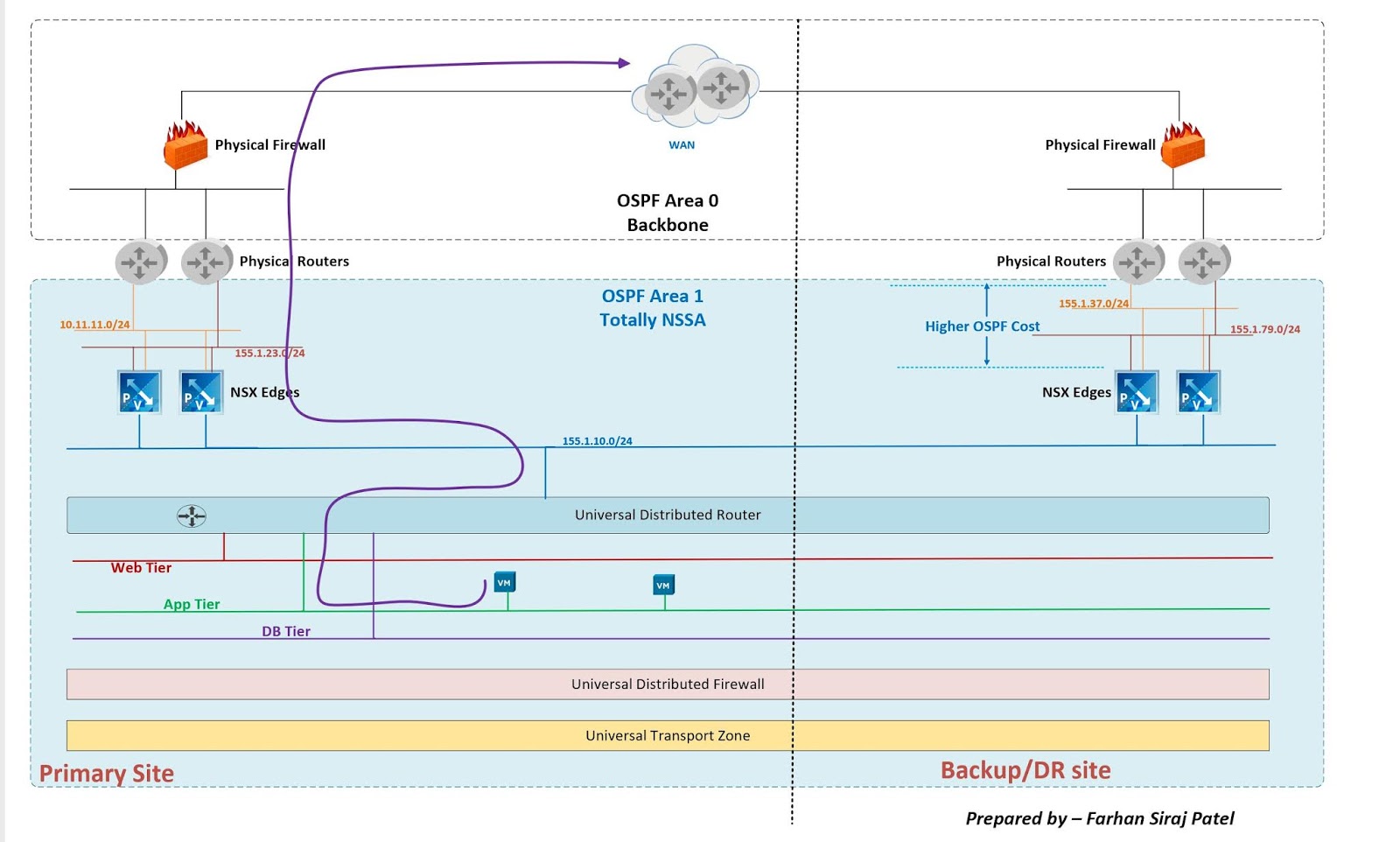

UDLR follows the default route



If there are other services/customers connected to the physical routers of Site 2, then such traffic will not go via Site 1. Instead be routed towards local NSX edges in Site 2 because intra area routes are preferred as compared to inter area routes.

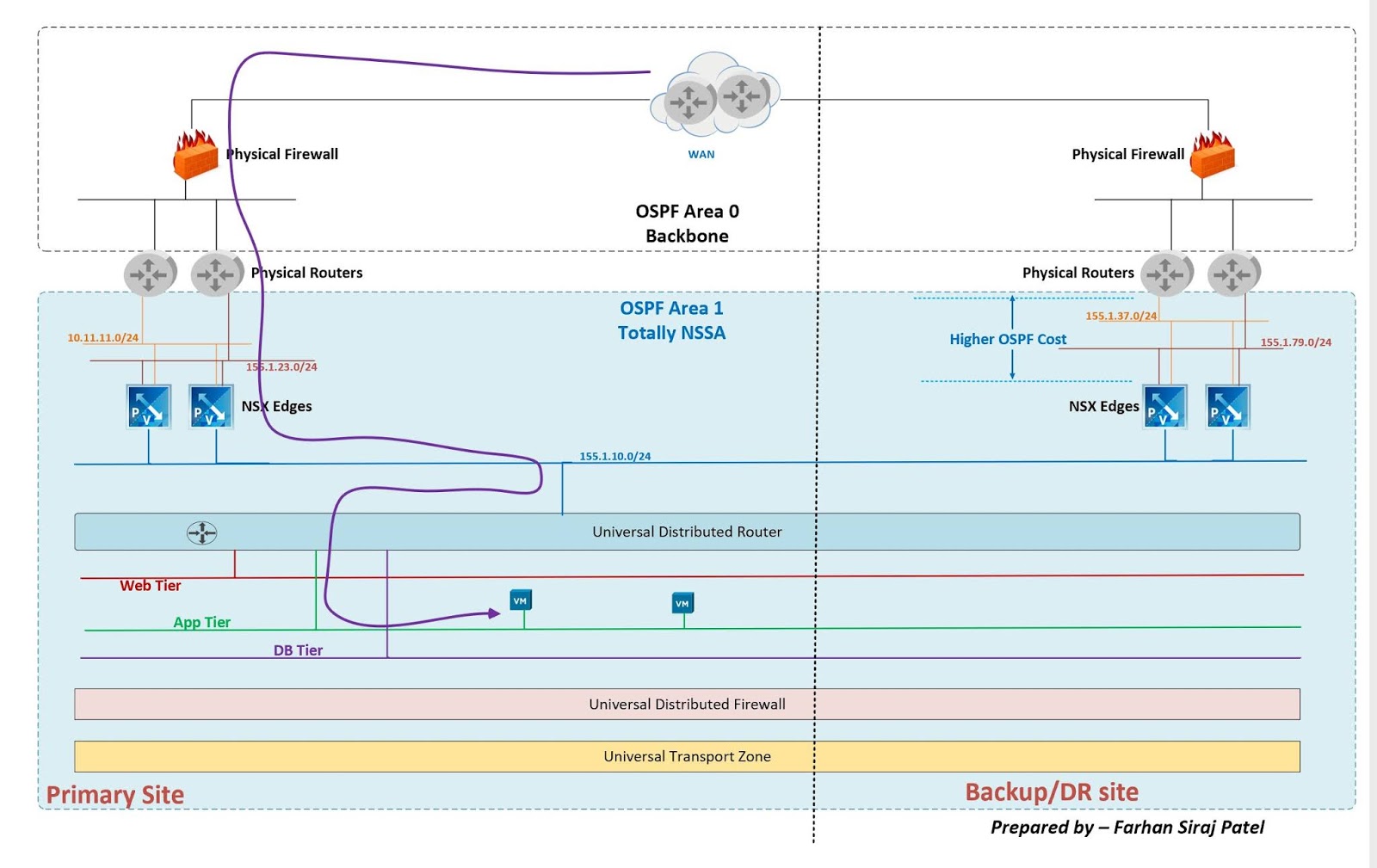

Ingress from Core WAN to App Tier LS
